Measuring Range | Low range: 0.1~400 NTU (Lower limit 1 NTU) Mid range: 0.1-2000 NTU (Lower limit 2 NTU) High range: 0.1~4000 NTU (Lower limit 10 NTU) |
Accuracy | ±5% |
Response Time | 6~300 seconds (adjustable depending on settings) |
Communication | Modbus/RS485 (4 wire) |
Temperature Range | 0~55°C (32~131°F), Resolution: 0.1°C (0.18°F) |
Calibration | Standard solution calibration, Water sample calibration |
Power Supply | 9~36 VDC (Current ≥50 mA) |
IP Rating | IP68 |
Warranty | 2-year limited warranty |

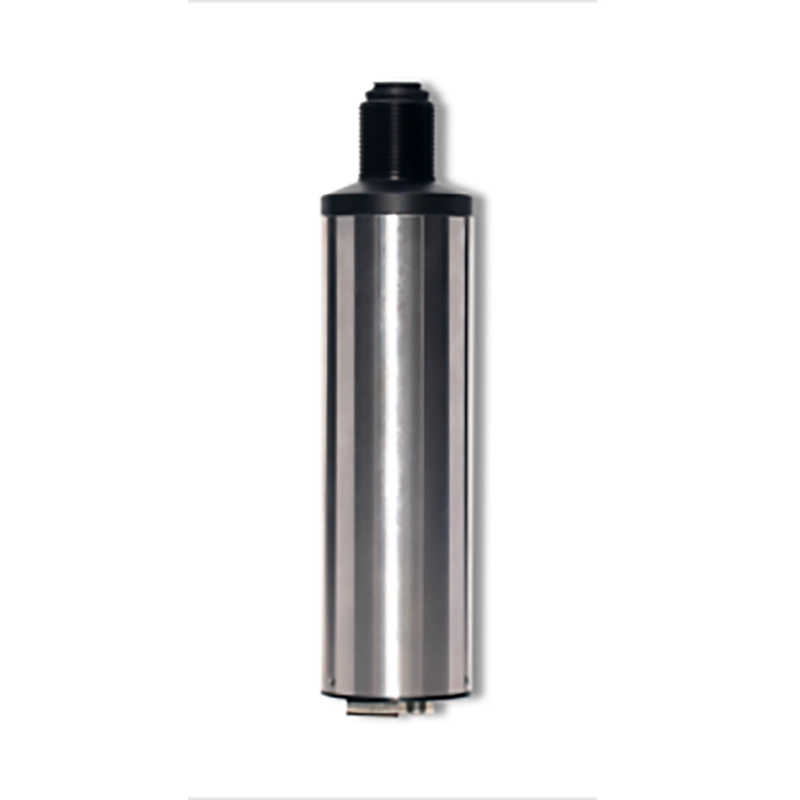

Turbidity Sensor : TLS-NTU01
- High Sensitivity and Stability
- Wide Measurement Range
- Robust & Waterproof Housing
- Plug-and-Play Integration

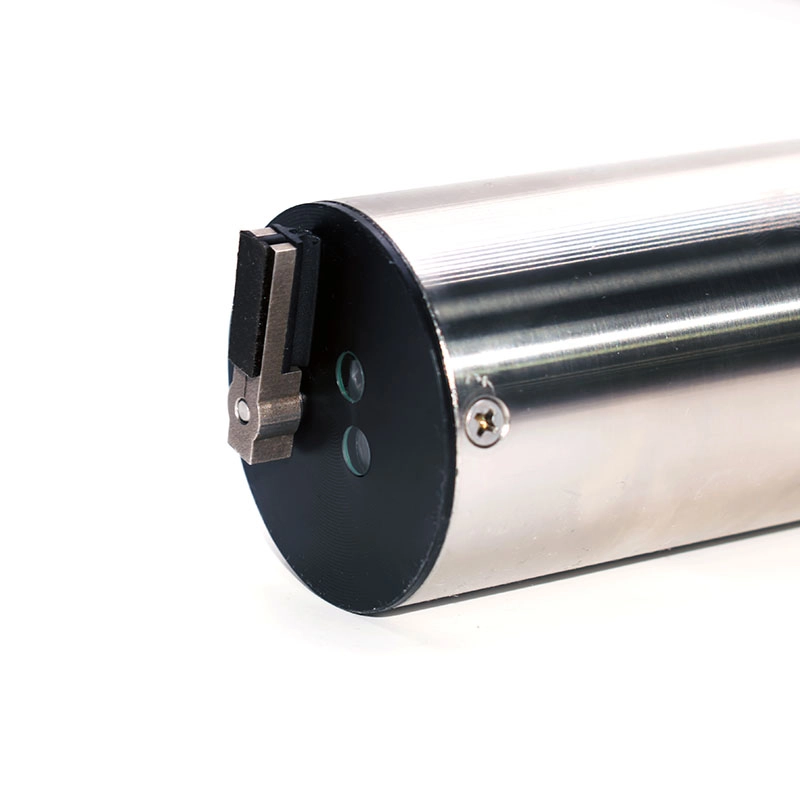

Utilizes infrared light scattering or 90° detection to ensure accurate and repeatable measurements.
Covers a wide turbidity range, suitable for applications ranging from clean water to high turbidity sludge.
IP68-rated body with industrial-grade materials ensures durability in harsh environments.
Supports standard Modbus/RS485 output for seamless integration into control systems.
