Application | pH / ORP / Ion Conductivity /Resistivity TDS / Salinity / Acid base salt concentration / Polarographic DO / Trace DO / Fluorescent DO / Turbidity / TSS / Potentiostatic FCL / Polarographic FCL / Potentiostatic CLO2 / Potentiostatic Ozone |
Mounting Type | Wall-mounted / Panel-mounted |
Display | Full-color LCD (multi-line) |
Data Logging | RS485 (MODBUS RTU) |
Analog Output | 2 × 4~20 mA (Isolated), configurable range |
Digital Communication | RS485 / Modbus RTU |
Relay Outputs | 2 × SPDT, 250 VAC / 3 A or 30 VDC |
Power Supply Voltage | 85~265 VAC or 9~36 VDC, ≤3 W |
Weight | 0.8 kg |
Dimensions (H × W × D) | 144 mm × 144 mm × 118 mm |
Panel Cutout | 137 mm × 137 mm |

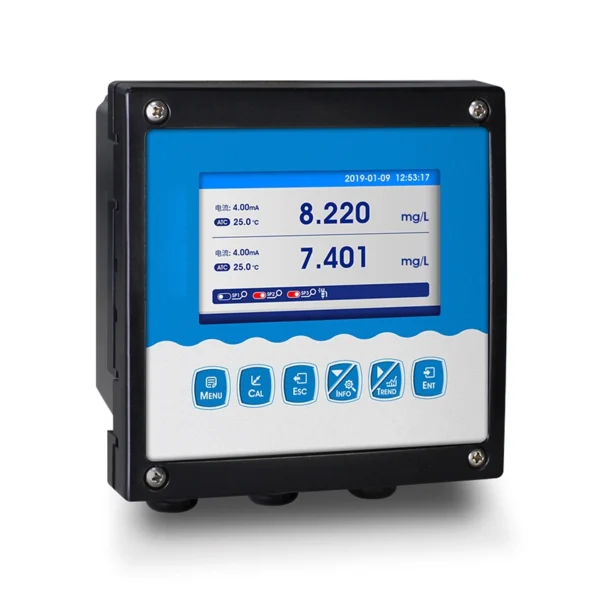

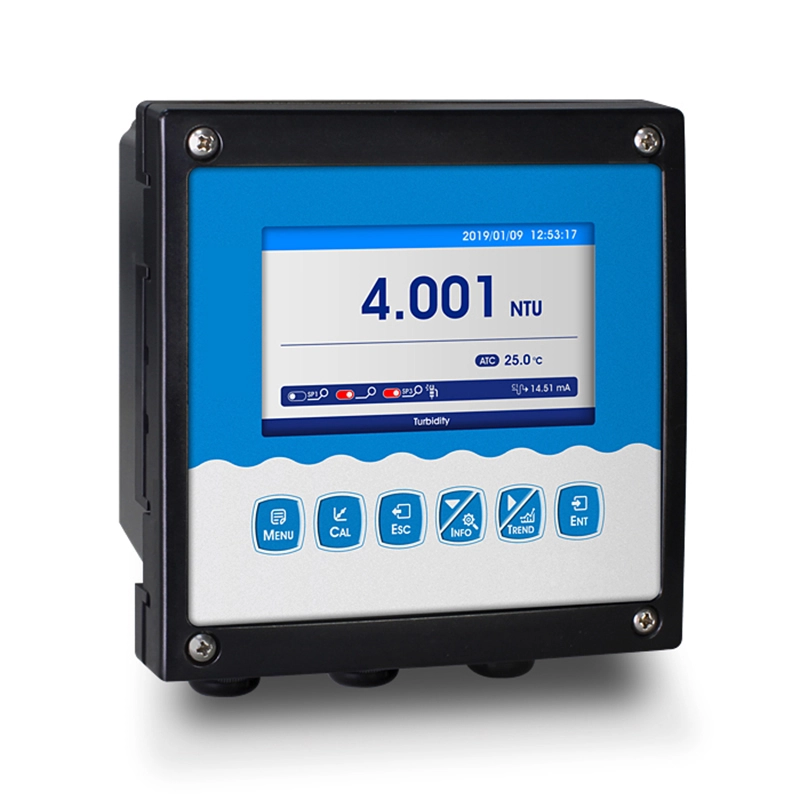

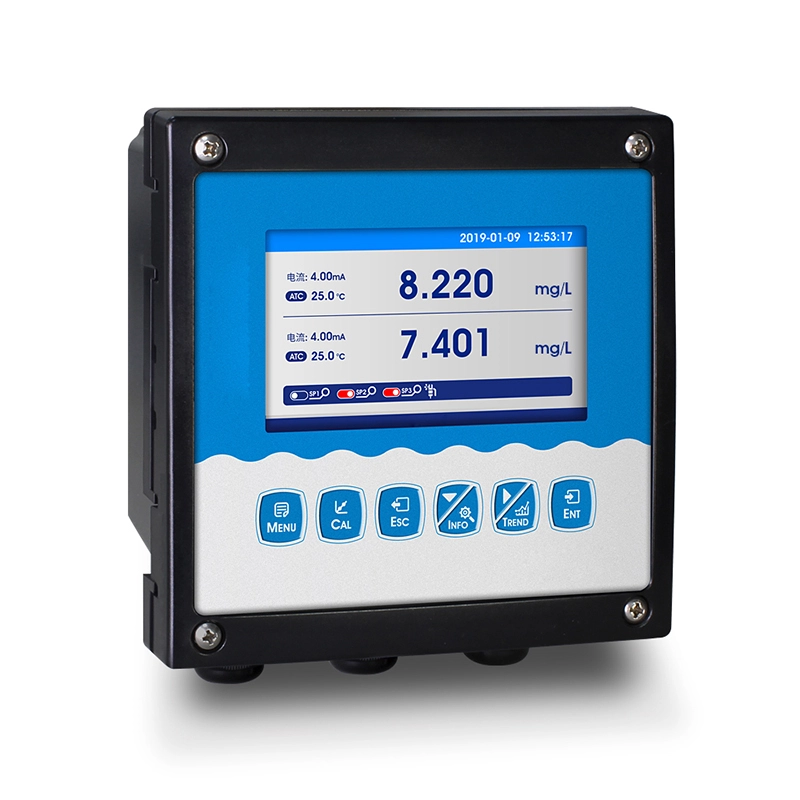

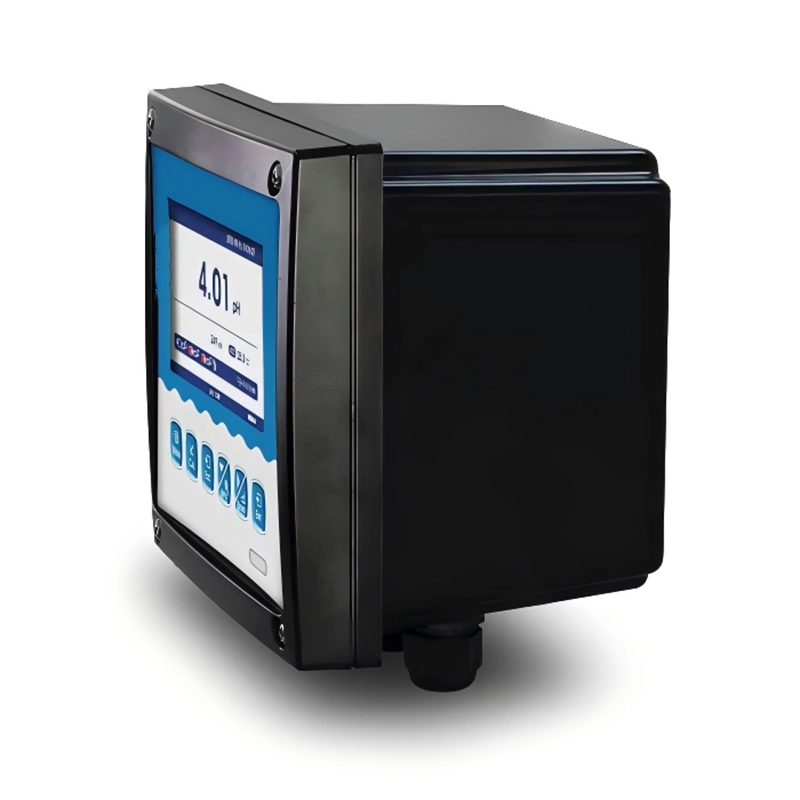

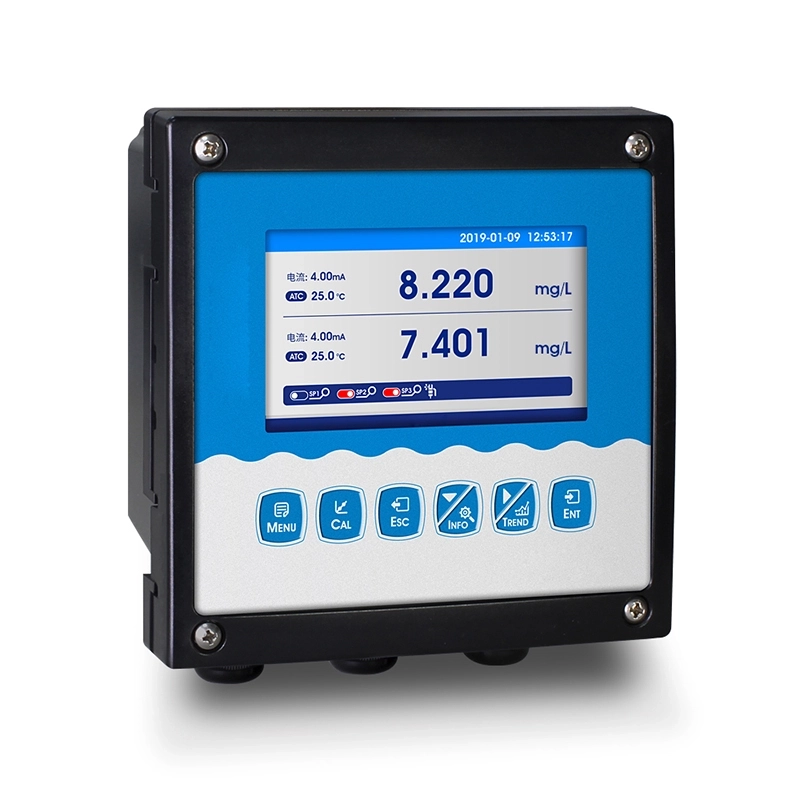

Online Single/Dual-parameter Controller / Analyzer-Plus : TLM-600
- Flexible and Intelligent Monitoring with High Precision
- High-Performance Design
- Advanced Calibration
- Flexible Output Options
- Multiple Relay Controls
- Dual Installation Modes
- Real-Time Data Management
- Wide Power Input Range
Suitable for complex monitoring needs with dual-channel operation.
Multiple calibration modes supporting automatic and manual temperature compensation (0~150°C).
Two isolated 4~20 mA analog outputs plus RS485 MODBUS RTU digital interface.
2× configurable relays (high/low limit or hysteresis mode), suitable for alarm or dosing control.
Compatible with both panel and wall installation.
Built-in trend chart and historical data review via color LCD screen.
Operates on 85~265 VAC or 9~36 VDC with ≤5 W power consumption.
