Measuring Range | 0.1~200 mg/L |
Detection limit | 0.1 mg/L |
Pressure Rating | ≤0.2 MPa (≈2 bar / 200 kPa / 29.01 PSI) |
Temperature Range | 0~55°C (32~131°F), Resolution: 0.1°C (0.18°F) |
Temp Accuracy | ±0.5°C |
Communication | Modbus/RS485 (4 wire) |
Power Supply | 9~36 VDC (Current ≥50 mA) |
IP Rating | IP68 |
Warranty | 2-year limited warranty |

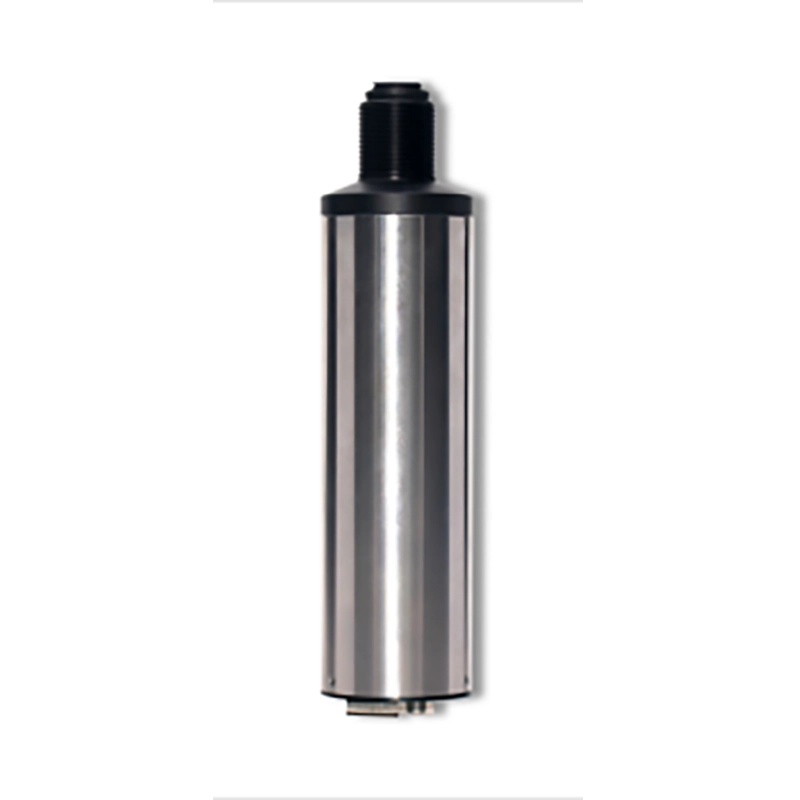

Oil-in-Water Sensor : TLS-OIW01
- Wide Measurement Range for Versatile Applications
- Rugged, Corrosion-Resistant Design
- Wide Operating Temperature Range

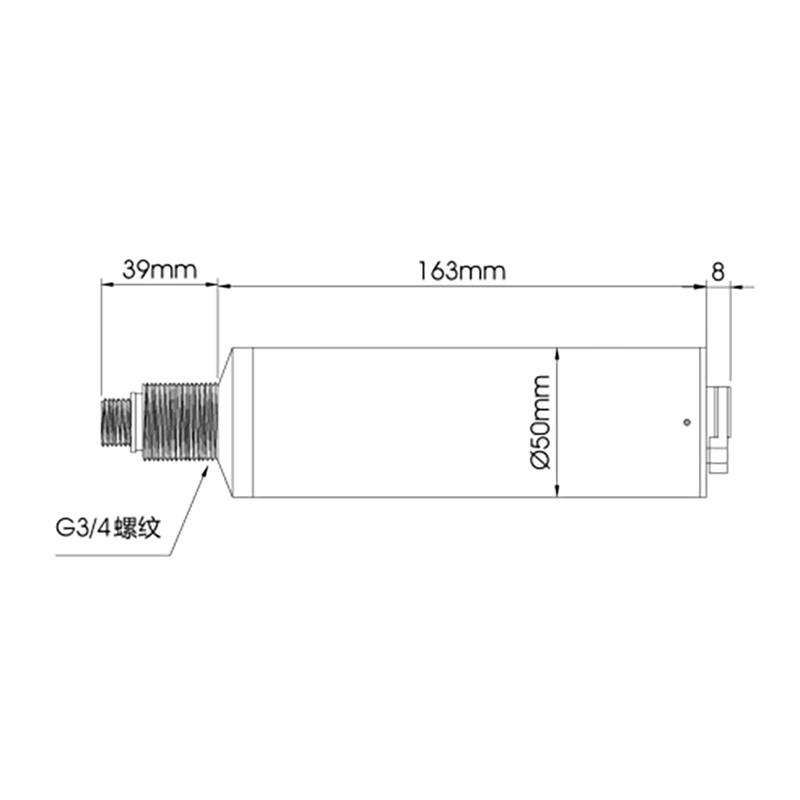

- G3/4″ threaded connection enables quick inline installation
Covers 0~200 mg/L, making it suitable for monitoring high oil concentrations in industrial wastewater and primary treatment effluent.
Built with 316 stainless steel and rated IP68 for long-term submersible use in harsh water treatment environments.
Performs reliably from 0~50°C, suitable for most municipal and industrial wastewater conditions.
Equipped with G3/4″ thread, compatible with a variety of mounting configurations without the need for custom fittings.
