Measurement Range | 0.005~2 mg/L, 0.05~5 mg/L, 0.05~10 mg/L, 0.05~20 mg/L, 0.5~200 mg/L |
Resolution | 0.001 mg/L, 0.01 mg/L, 0.1 mg/L |
Accuracy | Total chlorine: ±1%F.S; pH: ±0.05 pH |
Operating Temp | 0~50°C (32~122°F) |
pH Range | pH 6~8 |
Response Time T90 | <90 s |
2-Road Current Output | 0/4~20 mA (load resistance <750 Ω) 20~4 mA (load resistance<750 Ω) |
Power Supply | 9~36 VDC; power: ≤3 W |
Warranty | 2-year limited warranty |

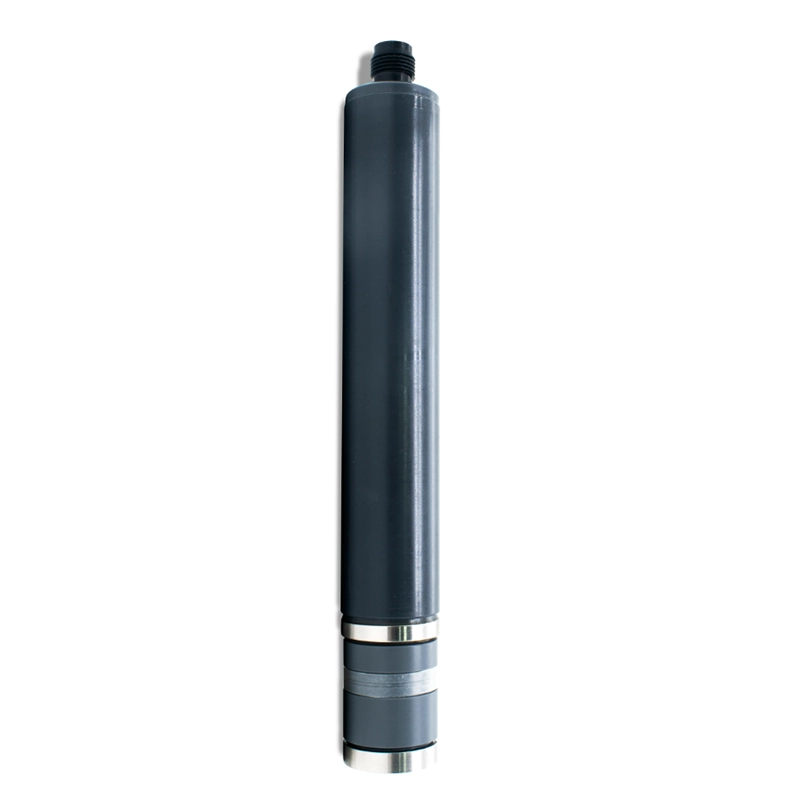

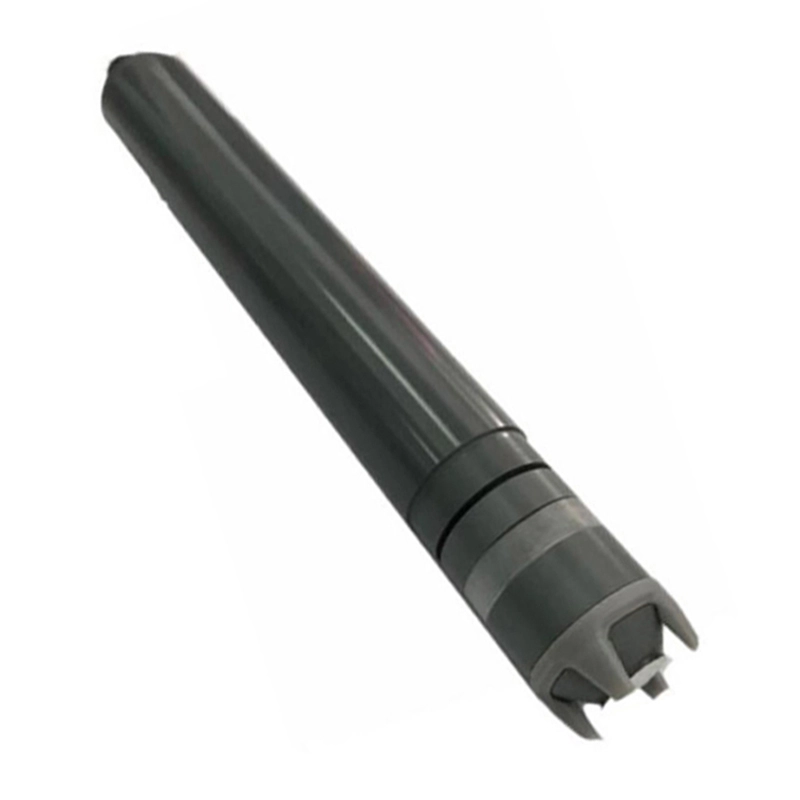

Membrane-Type Residual Chlorine Sensor (3-Electrode, Amperometric) : TLS-FCL02P
- Versatile Control and Communication
- Comprehensive Measurement Capabilities
- User-Friendly Interface
- High Performance
The device offers flexible control with high/low limit and hysteresis control, and it supports both 4~20 mA and RS485 outputs for easy integration into various systems.
It provides a wide measurement range for total chlorine, from as low as 0.005 mg/L to as high as 200 mg/L, with a high resolution of up to 0.001 mg/L. It also measures pH within a range of 6~8.
Total chlorine values and status are displayed on the same interface, simplifying monitoring. The inclusion of password protection prevents unauthorized changes to settings, ensuring data integrity and safe operation.
The analyzer boasts a high accuracy of ±1% F.S. and a fast response time (T90 < 90 s), providing reliable and timely data.
