Nominal diameter | 15~2000 mm | ||||||||||||||||||||||
Velocity range | 0~10 m/s | ||||||||||||||||||||||
Degree of accuracy | ±0.5%R, ±1%R ( Medium conductivity ≥5 uS/cm, Actual conductivity≥30 uS/cm Nominal pressure 1.0~4.0 MPa Environment temperature LCD Display: -10°C~55°C OLED Display: -30°C~55°C Medium temperature (Lining) CR: 0~80°C PTFE: 0~120°C FEP: 0~120°C PFA: -10~180°C FVMQ: 70~250°C PU: -20~60°C Output signal 4~20 mA / RS485, Support standard Modbus-RTU protocol Cable entry Standard Waterproof Gland, Optional Explosion-proof Gland Supply voltage 110/220 VAC (100~240 VAC), 50 Hz/60 Hz; 24 VDC Electrode material (Signal & Grounding) Stainless Steel 316 L, Hastelloy C, Hastelloy B, Titanium, Tantalum, Platinum Housing material DN15-DN450: Stainless Steel 321 Other sizes: Standard Carbon Steel and Stainless Steel (Customizable) Connecting cable length (Separate body-type) 10 m standard, optional 1~300 m Tips Mechanical Installation The integrated unit is mounted directly to the pipeline using standard flanges or customized connections. Electrical Connection Power and signal cables are connected directly to the single-body unit, simplifying wiring and setup. Ease of Installation With only one compact component to install, the system enables faster commissioning and reduced installation time. |

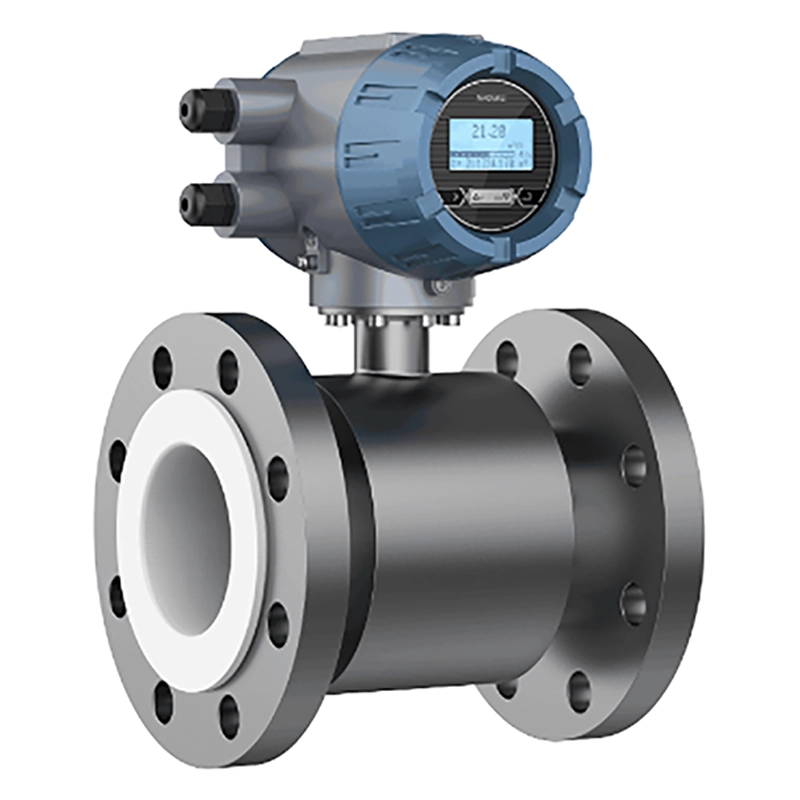

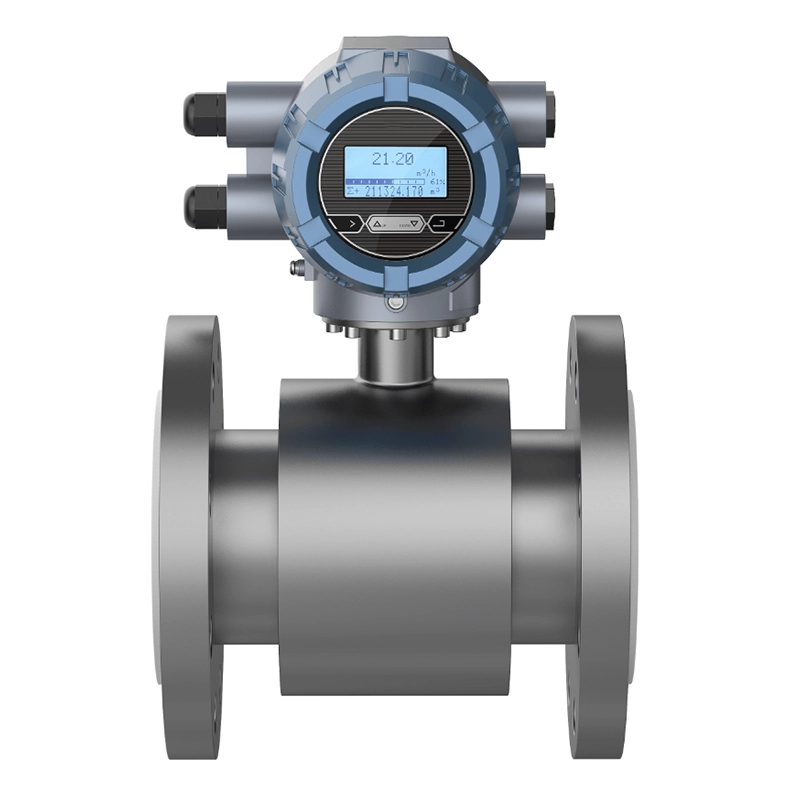

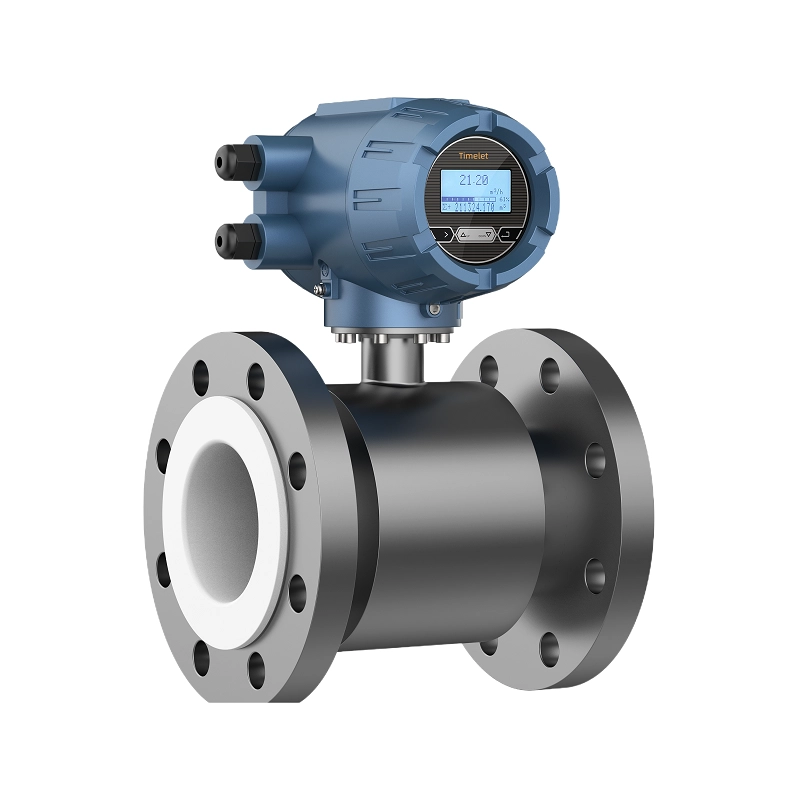

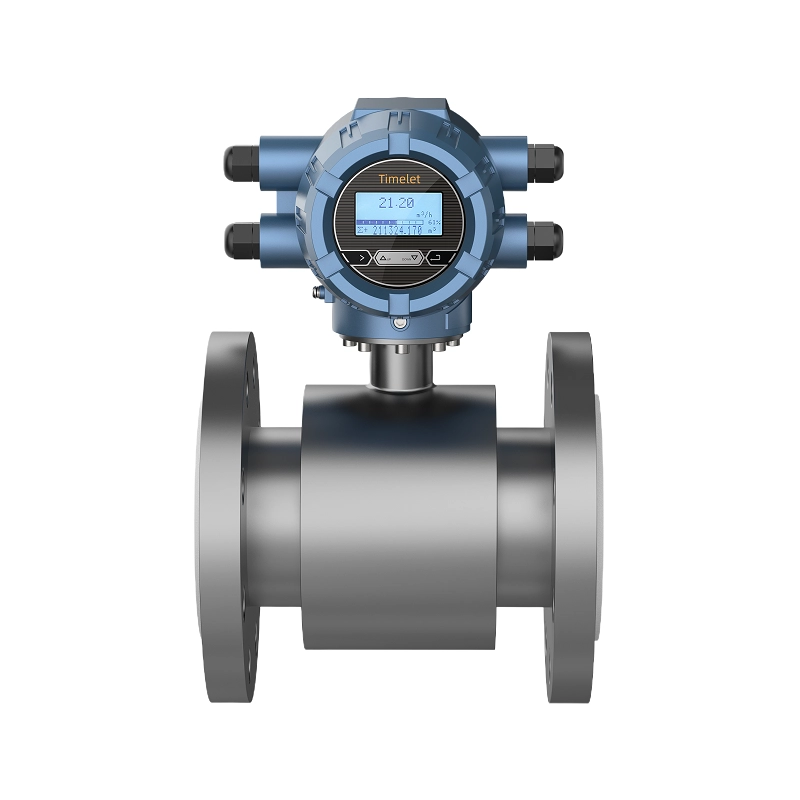

Integrated Electromagnetic Flow Meter : TLFM-G
- Broad Application Range
- Robust & Reliable Performance
- Flexible Integration
- Advanced Connectivity
- Universal Protocol Compatibility
- Accurate Data Management
Suitable for conductive media (>5 μS/cm) and compatible with a wide range of pipe diameters (DN15-DN2000), making it ideal for use across various industries.
Designed for long-term accuracy and stability under demanding environmental and process conditions.
Supports multiple power supply options and signal outputs (4~20 mA, RS485 MODBUS RTU) for seamless system integration.
Equipped with both wired and wireless (GPRS) communication capabilities to ensure flexible and remote data access.
Supports standard RS485 with MODBUS-RTU protocol for easy integration into SCADA and industrial automation systems.
Provides cumulative pulse outputs and enables remote monitoring with wireless telemetry systems for enhanced operational insight.
