Flow Rate Range | 1~20 L/h (1,2,3,6,9,12,15,20) |
Max Discharge Pressure | 7 bar=0.7 MPa=700 kPa≈101.53 PSI |
Stroke Frequency (strokes/min) | 0~120/0~160 |
Suction height (m) | 2 |
Power Supply | AC 220 V |
Power Consumption | <50 W |
Control Modes | Manual |
Weight | 2.6~2.9 kg |

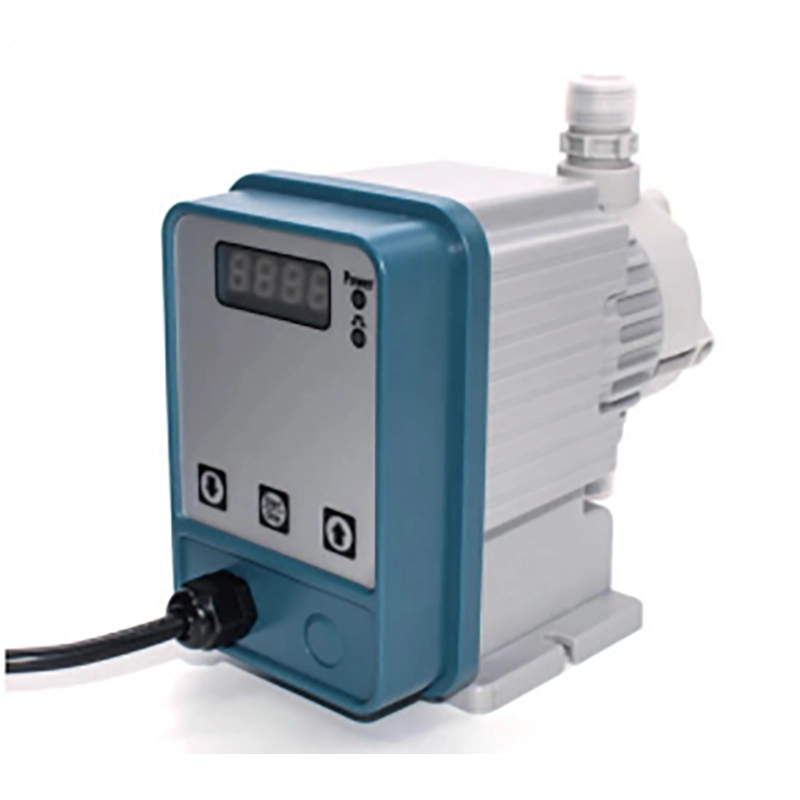

Electromagnetic Diaphragm Metering Pump : TLP-200
- Highly corrosion-resistant materials
- Corrosion-resistant wetted parts
- Intuitive LED digital display
- Compact and economical design
- Reliable fluid control mechanism
- Ideal for chemical transfer and dosing
Built with imported engineering plastics and precision-machined PTFE valve seats, ideal for handling aggressive chemical fluids.
Valve springs made of Hastelloy C276 valve springs ensure durability in aggressive chemical dosing.
Real-time operational status is clearly visible, enhancing ease of use and on-site monitoring.
Simplified structure reduces installation space and cost, making it a cost-effective solution for various chemical dosing needs.
The electromagnetic coil drives a push rod to deform the diaphragm, while check valves manage precise suction and discharge during each cycle.
Especially suited for wastewater treatment, laboratory use, and small-scale industrial processes requiring consistent metering.
