Measuring Range | 0.2~100 mg/L |
Accuracy | ±5% |
Pressure Rating | ≤0.1 MPa (≈1 bar / 100 kPa / 14.5 PSI) |
Measurement Principle | Electrochemical Method (Ion Electrode Type) |
Operating Temp | 0~50°C (32~122°F) |
Temp.Compensation | NTC10K |
Power Supply | 9~36 VDC (Current ≥50 mA) |
IP Rating | IP68 |
Warranty | 1-year limited warranty |

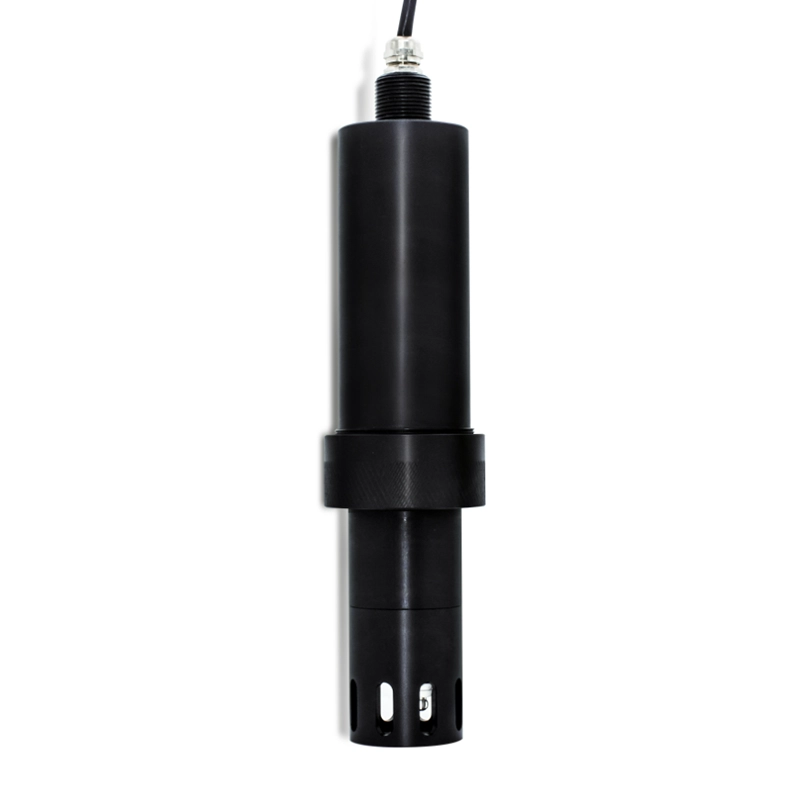

Digital Ammonia (NH₃/NH₄⁺) Sensor : TLS-NH01
- High Accuracy & Stability
- Rugged & Waterproof Design
- Standard Industrial Communication
- Wide Measurement Range
Ion-selective electrode technology with ±5% accuracy ensures reliable and precise ammonia nitrogen measurement. Built-in NTC10K temperature compensation maintains consistent readings under varying temperatures.
IP68-rated POM housing offers excellent chemical resistance and durability for harsh aquatic environments and long-term submersion.
Supports RS485 MODBUS RTU protocol for seamless integration into existing SCADA and automation systems with simplified wiring.
Measures 0.2~100 mg/L ammonia nitrogen, suitable for diverse applications including wastewater treatment, aquaculture, and surface water monitoring.
