Measuring Range | EC Range: 0~5000 µS/cm 0~2000 to 0~200,000 µS/cm TDS Range: 0~25000 mg/L Salinity Range: 0~2500 mg/L |
Cell Constant | K≈1.0 |
Temperature Range | 0~80°C (32~176°F) |
Pressure Rating | 0~0.2 MPa (≈2 bar /200 kPa / 29 PSI) |
Material | 316 L |
Temp.Sensor | NTC10K |
IP Rating | IP68 |
Warranty | 2-year limited warranty |
Notes | Optimized for medium to high conductivity measurements in wastewater treatment, seawater, brine solutions, chemical industries, and other industrial water processes. |

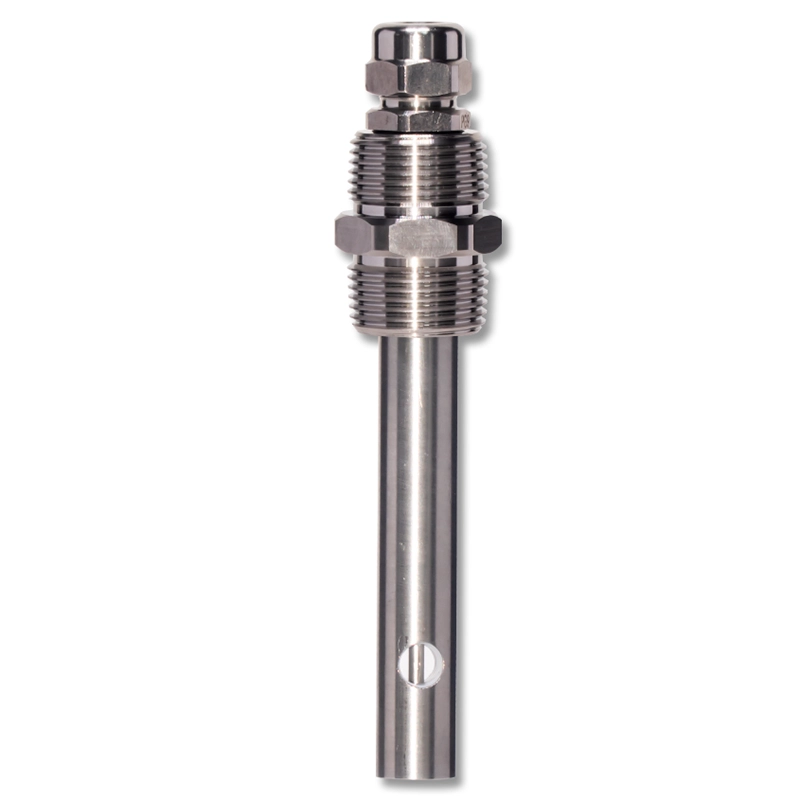

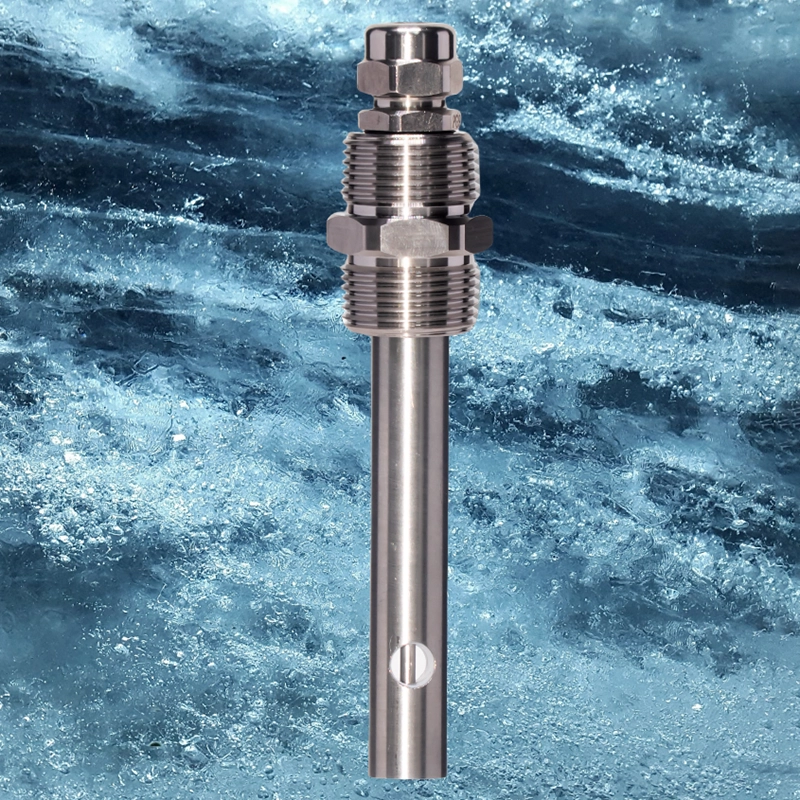

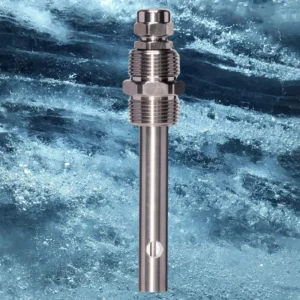

Analog Resistivity Electrode Sensor : TLS-RES02A
- Ultra-wide conductivity range (up to 200,000 μS/cm)
- Versatile Application Range

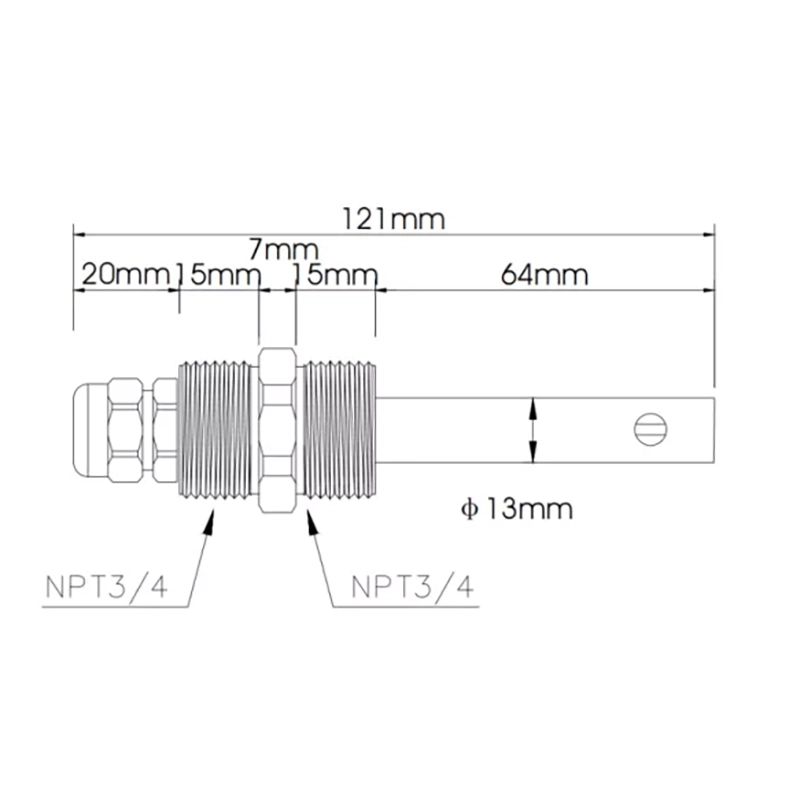

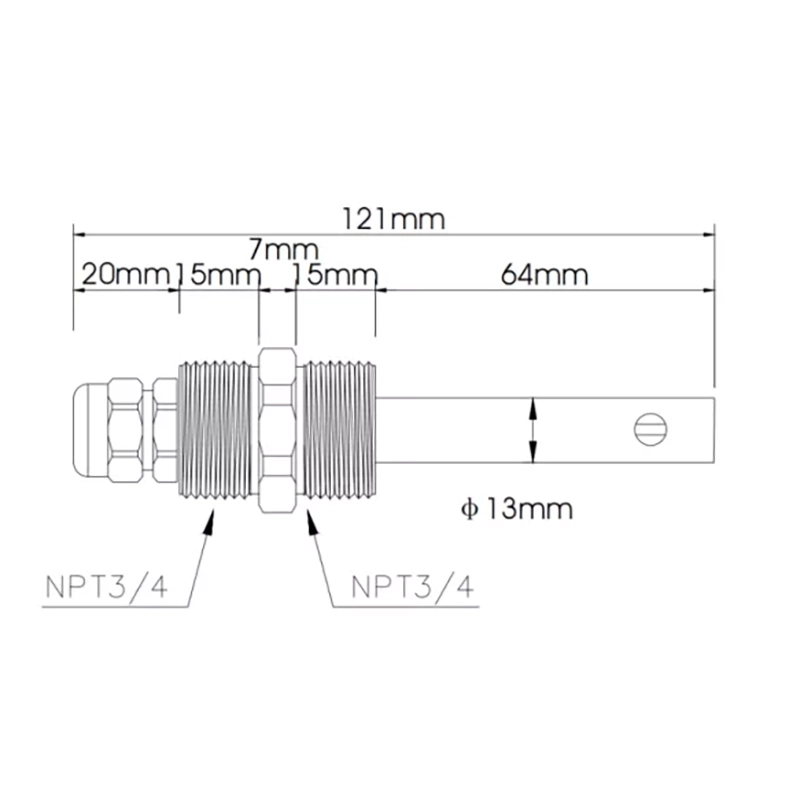

- Dual NPT Thread Design
- Reliable Temperature Compensation
- Cost-Effective Choice
- Long-Distance Signal Transmission
Ideal for complex, high-salinity or high-TDS environments.
Operates in 0~80°C and up to 2 MPa, suitable for various industrial processes like boiler water, drinking water, or wastewater.
Facilitates flexible integration into pipelines and tanks, reducing installation complexity.
Equipped with NTC10K for automatic temperature correction, ensuring accurate EC readings.
Delivers stable performance with essential parameters at a competitive price compared to imported options.
10 meter to 30 meter cable as standard supports remote installation and cabinet integration.
