Measuring Range | 0.01~200 µS/cm |
Cell Constant | K≈0.1 |
Temperature Range | 0~80°C(32~176°F) |
Depth / Pressure Rating | 0~2.0 MPa(≈20 bar / 2000 kPa / 290 PSI) |
Material | 316L |
Temp.Sensor | NTC10K / 2.2K / PT100 / PT1000 |
IP Rating | IP68 |
Warranty | 2-year limited warranty |
Notes | Optimized for ultrapure water, deionized water, condensate, and pharmaceutical-grade water. Suitable for power plants, electronics, and biomedical industries. |

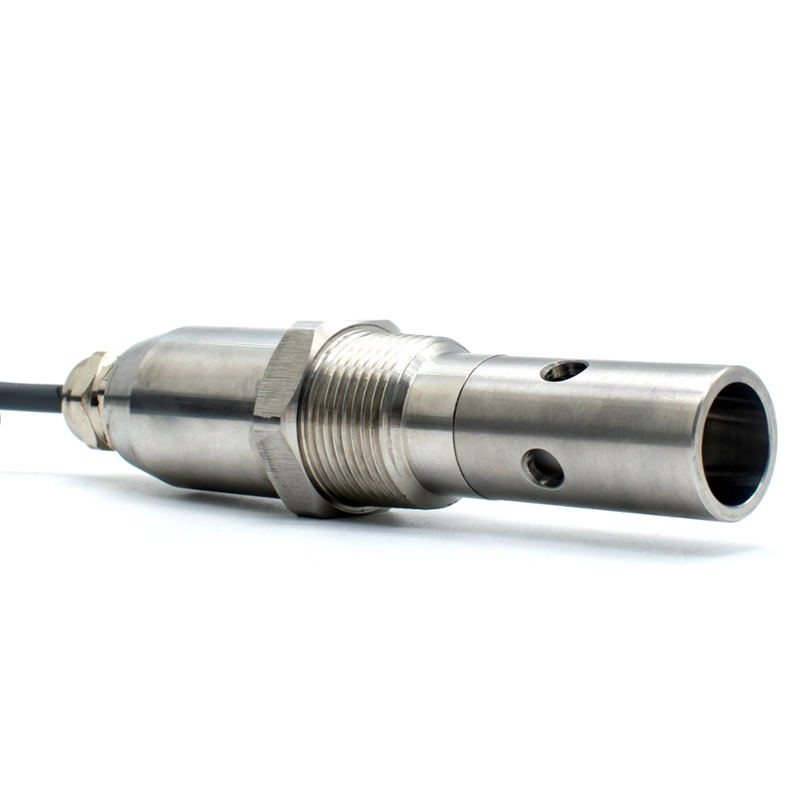

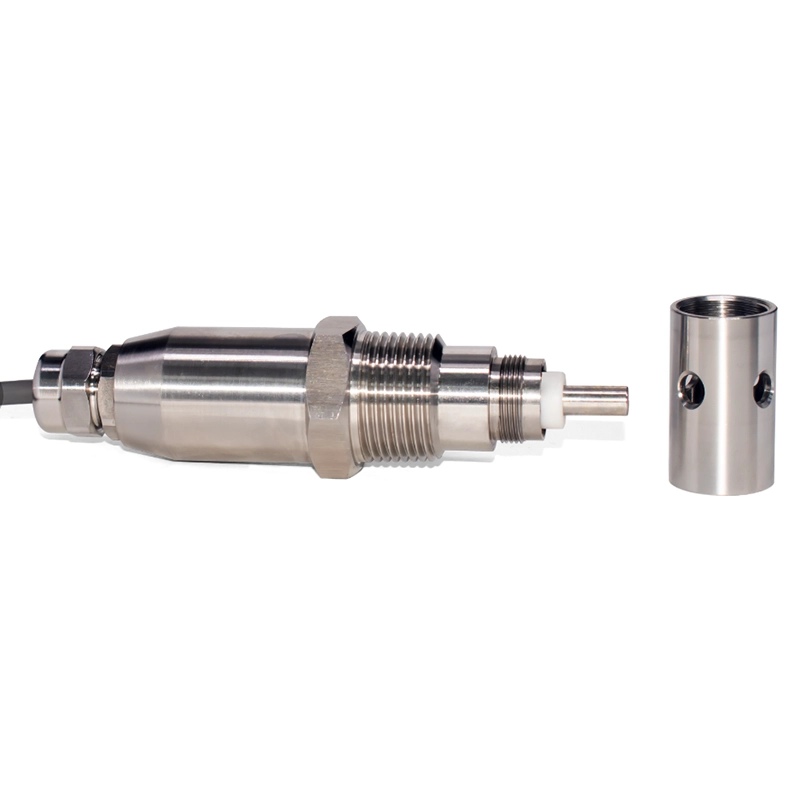

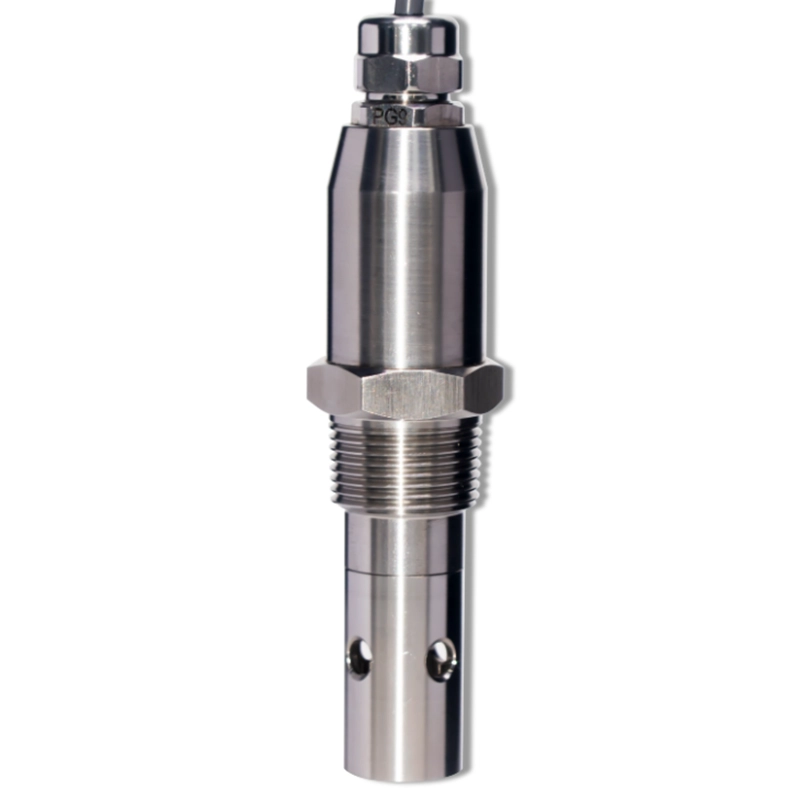

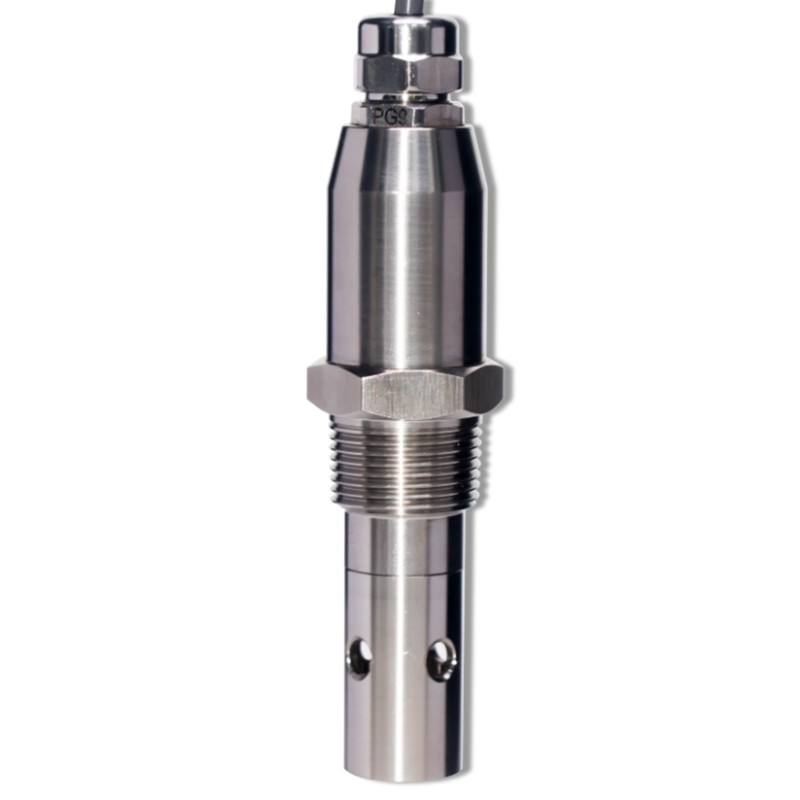

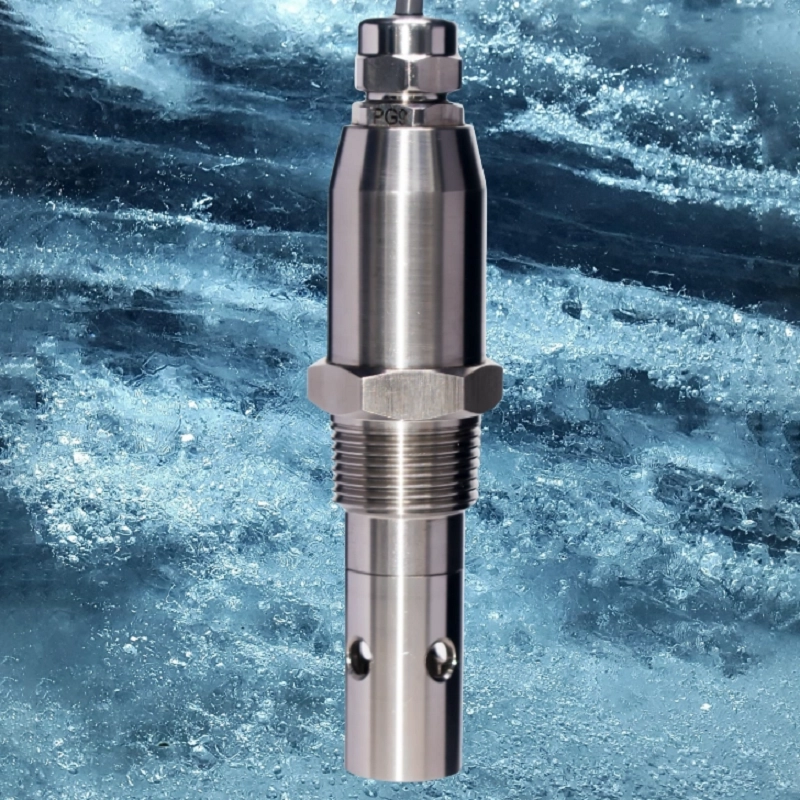

Analog Resistivity Electrode Sensor : TLS-RES01A
- Designed for ultra-low conductivity(0.01~200 μS/cm)
- Low cell constant(K≈0.1), 2-pole configuration
- Multiple temperature sensor options(NTC10K, NTC2.2K, PT100, PT1000)
- Supports pressurized applications up to 2 MPa(290 PSI)
Ideal for high-purity water quality control.
Ensures highly accurate and sensitive low-range measurements.
Flexible integration with a wide range of transmitters or controllers.
Suitable for pressurized systems like boilers and circulation loops.
