Measurement Range | 0~14 pH |
Accuracy | ±0.2 pH units at 25°C |
Resolution | 0.1 pH |
Temperature Range | 0~80°C (32~176°F) |
Temp.Accuracy | ±0.5°C (±0.9°F) |
Pressure Rating | 0~0.6 MPa (≈6 bar /600 kPa / 87 PSI) |
Electrical Impedance | <250 MΩ |
Electrode Length | ≈150 mm |
pH Glass Membrane | HA type (acid-resistant) |
Electrolyte | PCA polymer gel (pressure-resistant) |
Housing Material | PPS + glass fiber (chemical and thermal resistant) |

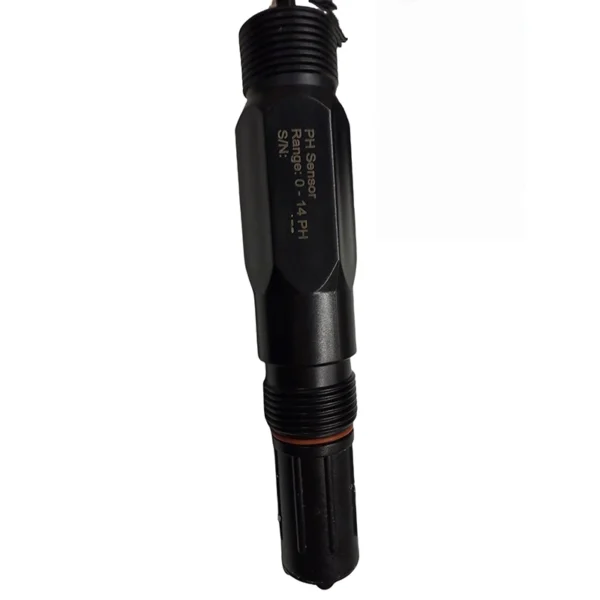

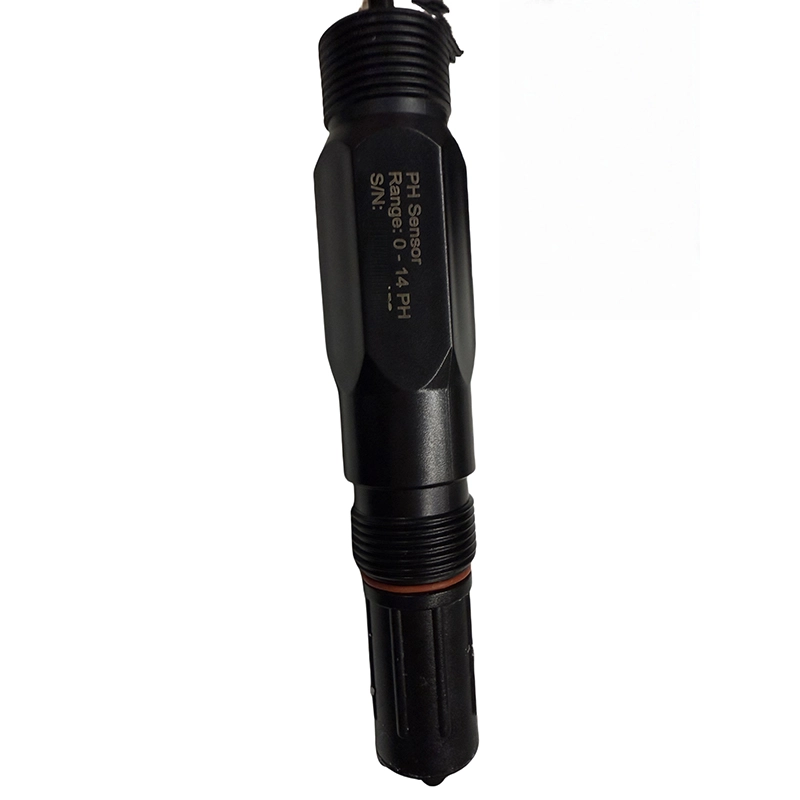

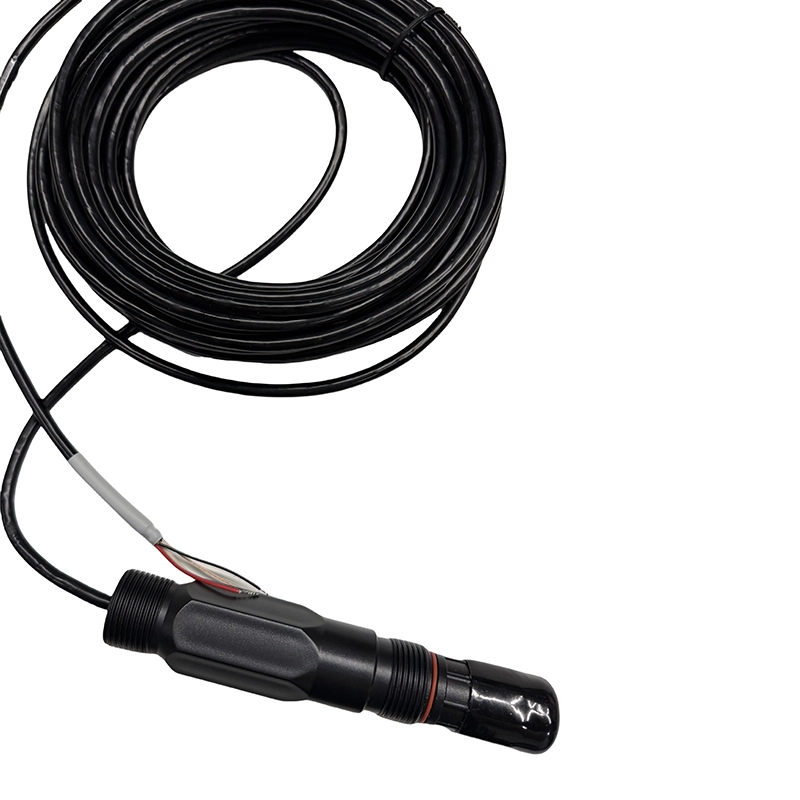

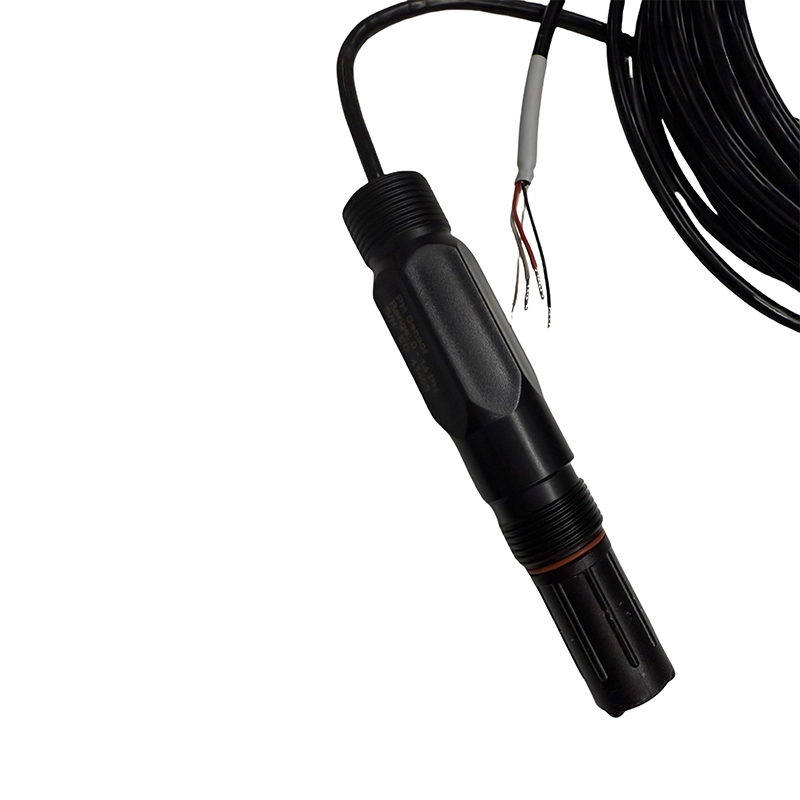

Analog pH Sensor-Pro : TLS-PH01AP
- Accurate & Fast Response
- Extended Lifetime in Harsh Conditions
- Flexible Mounting Options
- Customizable Temperature Compensation

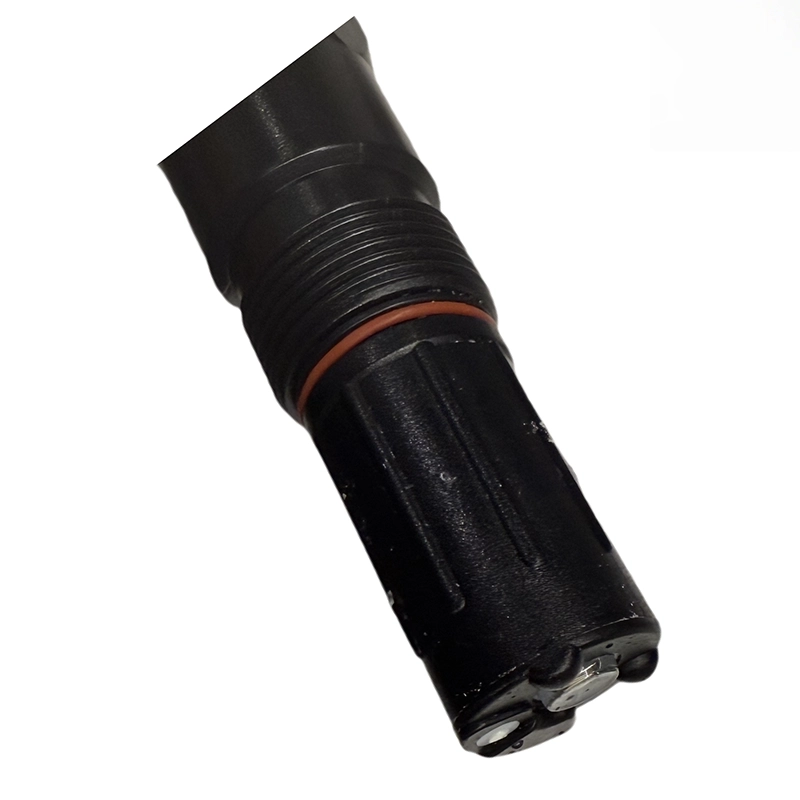

Precision-engineered HA-type glass membrane delivers high accuracy and rapid response time (<10 s).
Double shield and pressure-resistant gel design improves stability in aggressive environments.
3/4″ NPT threads at both ends for top or submersible installations.
Multiple sensor options (NTC/PT100/PT1000) for accurate compensation under varying process conditions.
