Measuring Range | 0~500 mS/cm |
Cell Constant | K≈0.5 |
Temperature Range | 0~50°C (32~122°F) |
Pressure Rating | 0~0.6 MPa (≈6 bar /600 kPa / 87 PSI) |
Material | PP + ABS |
Temp.Sensor | NTC10K / NTC2.2K / PT100 / PT1000 |
IP Rating | IP68 |
Warranty | 2-year limited warranty |

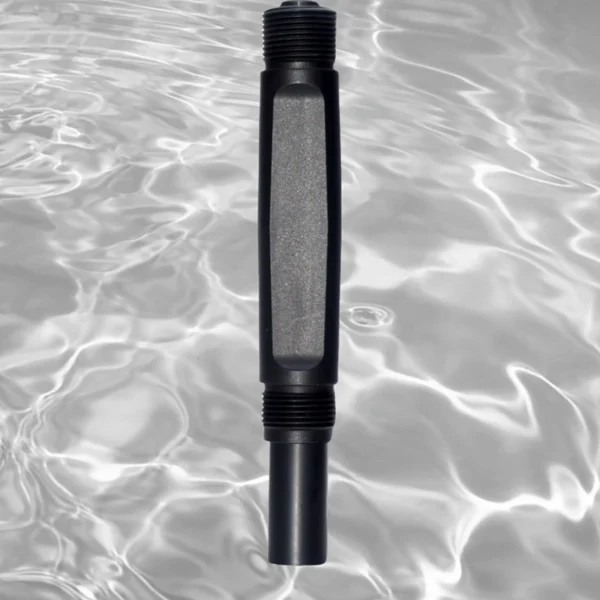

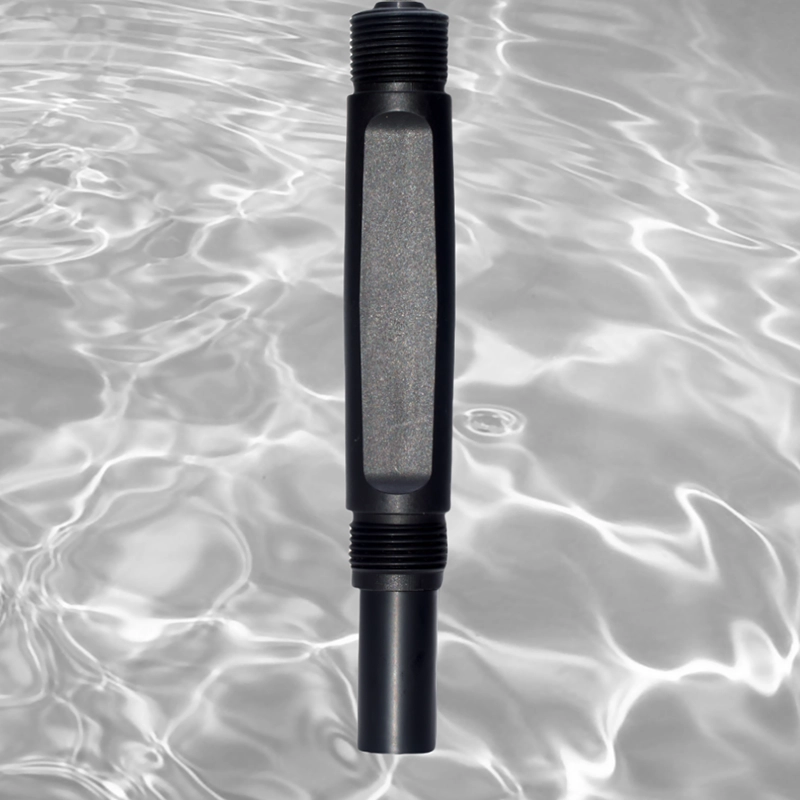

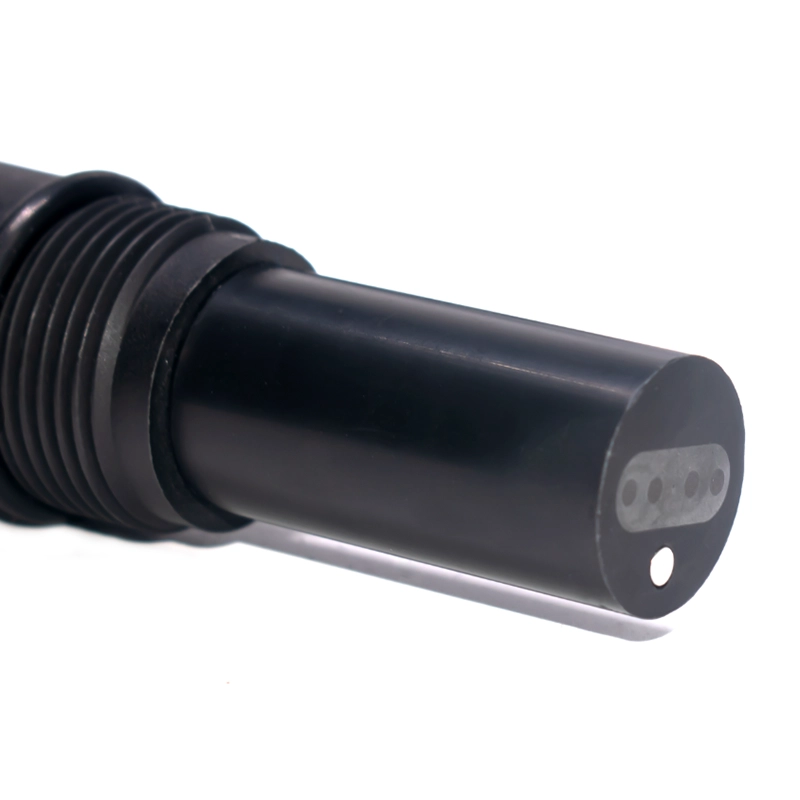

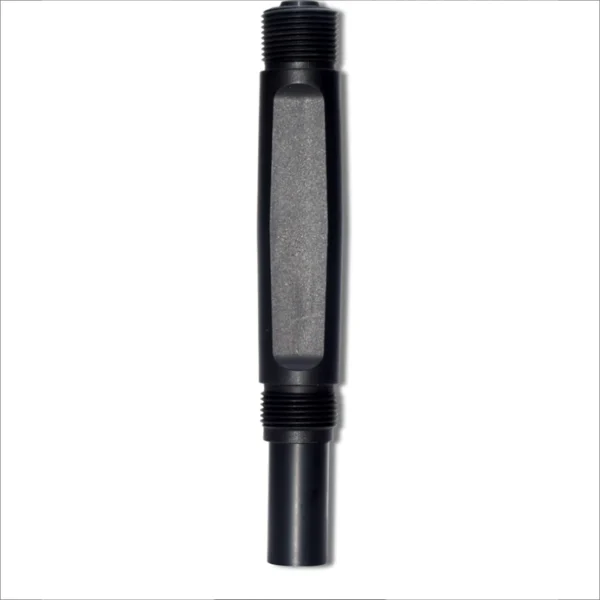

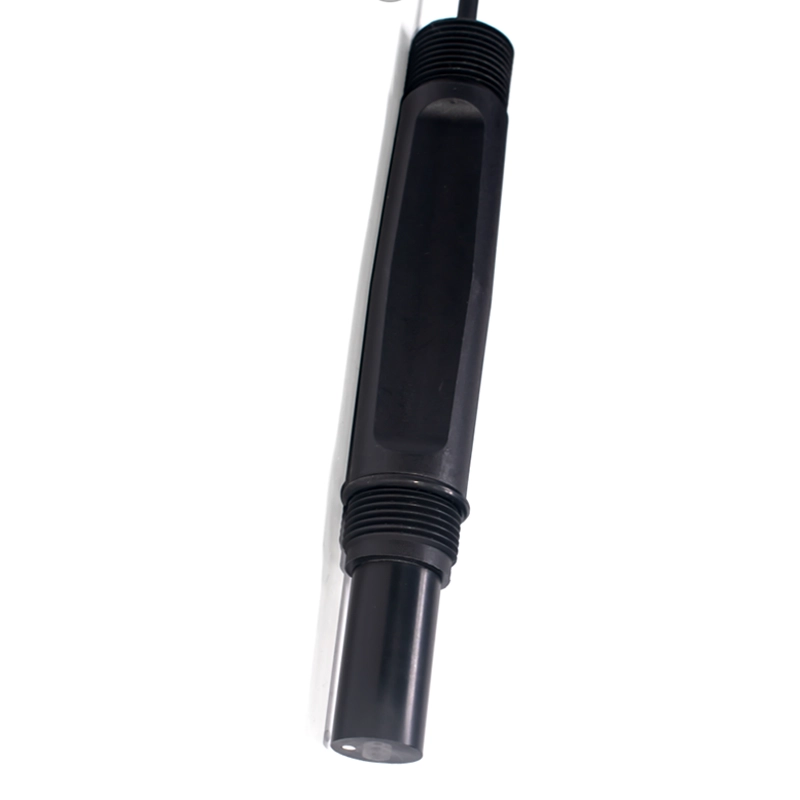

Analog 4-Electrode Conductivity Sensor-Pro : TLS-EC04AP
- Accurate Measurement Range
- Versatile Temperature Compensation
- Suitable Pressure Range
- Durable Graphite Construction
- Wide Power Supply Range
Measures conductivity up to 500 mS/cm with a cell constant of approximately 0.5, ideal for moderate conductivity applications.
Supports multiple temperature sensors (NTC10K, NTC2.2K, PT100, PT1000) for precise temperature compensation across 0~50°C (32~122°F).
Rated for pressures up to 0.6 MPa (6 bar / 87 PSI), suitable for various industrial and environmental applications.
Graphite sensor material offers excellent chemical resistance and stability in diverse liquid media.
Operates on 9~36 VDC, allowing flexible integration into existing systems.
